Description

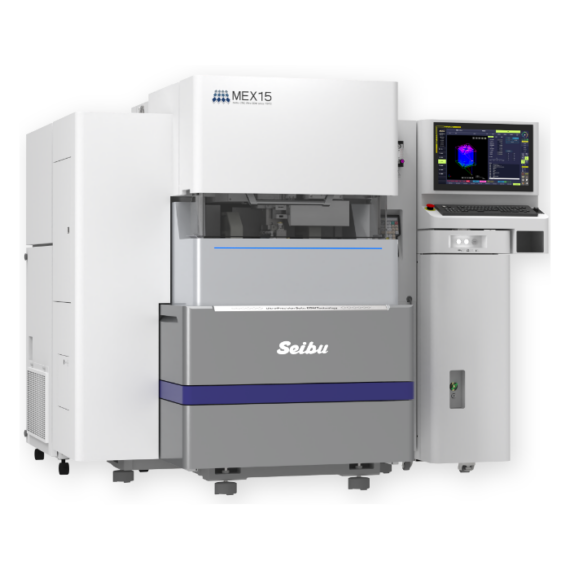

The MEX15 Ultra-Precision Wire EDM Machine represents the pinnacle of precision engineering, achieving the highest performance in Seibu Electric’s history. Designed for micro-machining and ultra-fine metal cutting, it supports workpieces up to 180×165×60mm and 12kg in weight, with a travel range of 150×150×120mm. Featuring Smart NC control, a 21.5-inch multi-touch TFT display, and simultaneous 4-axis operation, the MEX15 is the ultimate solution for high-precision industrial applications.
Key Features:
✅ Unmatched ultra-precision ±0.01µm control
✅ Compact yet powerful with high-accuracy conical cutting
✅ 5-axis control (simultaneous 4-axis operation)
✅ Ideal for micro-machining and fine metal cutting
✅ Smart NC control with a 21.5-inch TFT touch screen
✅ Advanced filtration & deionizer system for superior performance
✅ Efficient operation with 11 kVA power input
highest performance machine in history
| Standard Specifications | MEX15 |
|---|---|
| Max. workpiece dimensions W×D×H |
180×165×60mm
※Should not exceed the max. workpiece weight. |
| Max. workpiece weight | 12kg
※Including the weight of jig or the like |
| Axis travel range X×Y×Z |
150×150×120mm |
| U-V axis travel U×V |
±20× ±20mm |
| Max. taper angle | ±10°/60mm work thickness 60mm Conical cutting |
| Dimensions W×D×H |
1,830×1,770×1,855mm |
| Weight | 3,250kg |
| Control device | Smart NC |
|---|---|
| Input system | MDI, Ethernet, USB |
| Display | 21.5 inch TFT multi-touch screen |
| Axis controlled | 5 axis (simultaneously 4 axis) |
| Least input increment | 0.01µm |
| Least command increment | 0.01µm |
| Program memory capacity | 1GB |
| Power Supply | MPSC-20 |
|---|---|
| Input power source | 3-phase 200V/220V±10% 11 kVA, 50/60Hz |
| Weight | 160kg |
| Filtration device | MF300 |
|---|---|
| Tank capacity | 300L |
| Filter element | Paper filters (internal-pressure type)×2 |
| Deionizer | Oil spec./Oil(Class 4 Petroleum No.3) Water spec./Ion-exchanged water |
| Weight | 400kg |
Wire diameter : Φ0.03mm to Φ0.15mm
(Φ0.10mm is standard.)
