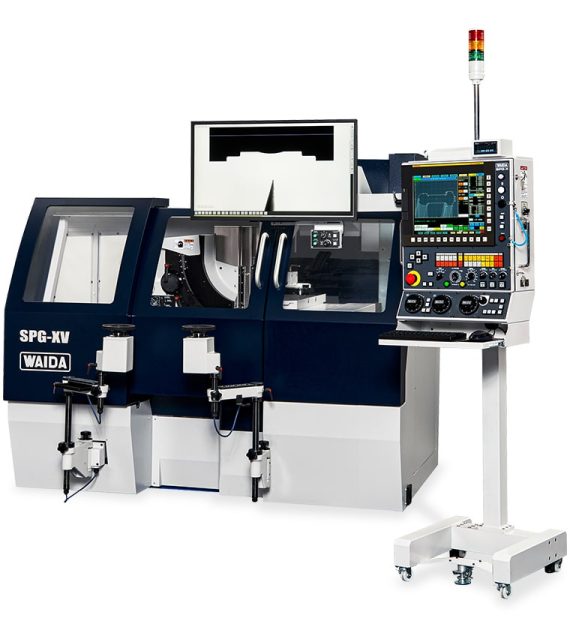

WAIDA SPG-XV GRINDER

Description

Standard Machine Specifications

Control & Display

• Monitor: 32-inch 4K display

• Lighting system: LED lighting

Work Table

• Table size: 700 × 400 mm

Travel Range

• Up & Down travel: 150 mm

• Total Z-axis travel: 300 mm

Spindle

• Spindle speed: 3,000 – 20,000 min⁻¹ (inverter controlled)

• Drive system: Direct motor coupling

• Cooling system: Oil cooling specification

• Sealing system: Air seal specification

• Grinding wheel outer diameter:

  • Ø60 – Ø90 mm (for small diameter wheels)

  • Ø120 mm (optional)

Axis Configuration

• X-axis travel: 200 mm (NC control)

• Y-axis travel: 170 mm (NC control)

• Z-axis:

  • NC controlled

  • Electric motor drive

Angle Adjustment Capability

• Front angle adjustment range: -1° to +2°

  • (Optional: -1° to +20°)

• Side angle adjustment range: ±3°

  • (Optional: ±15°)

• Horizontal swiveling angle range: +15°

Z-axis Reciprocating Specifications

Linear Motor Type

• Stroke speed: 0 – 300 strokes/min (NC control)

• Stroke length: 0.5 – 160 mm

Link Mechanism Type

• Stroke speed: 0 – 400 strokes/min

• Stroke length: 0.5 – 110 mm

Machine Dimensions & Weight

• Overall dimensions (W × D × H): 1,840 × 2,200 × 1,680 mm

• Machine weight: 4,500 kg

Power & Air Supply Requirements

• Rated power: 7 kVA

• Power supply: 3-phase 200/220 V (+10% / −15%)

• Frequency: 50 / 60 Hz (±1 Hz)

• Compressed air:

  • Pressure: ≥ 0.4 MPa

  • Air consumption: 100 L/min (ANR)
