Description

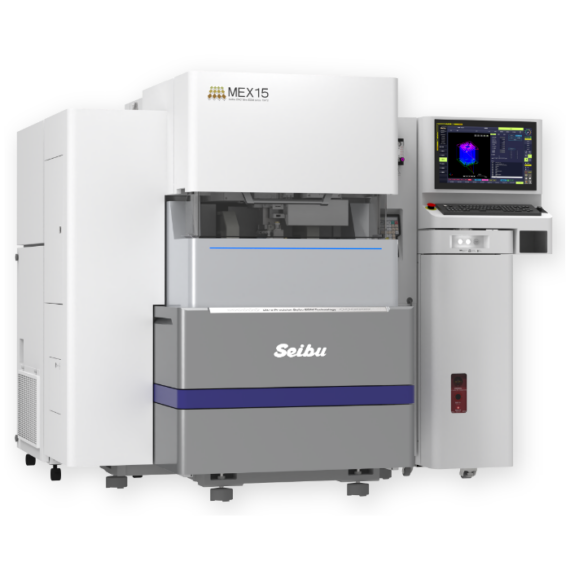

The MEX15 Oil Specification Wire EDM Machine is Seibu Electric’s most advanced ultra-precision EDM, designed to achieve exceptional accuracy in micro-machining applications. Featuring a specialized oil-based deionizer system (compatible with Class 4 Petroleum No.3 oil) and an ion-exchanged water option, this model ensures superior surface finishes and minimal wear on fine wire electrodes. With a 5-axis Smart NC control, high-precision conical cutting, and a 21.5-inch multi-touch display, the MEX15 sets a new standard in high-performance EDM technology.
Key Features:
✅ Ultra-precision ±0.01µm control for micro-machining
✅ Oil-based EDM system for superior surface quality
✅ 5-axis operation (simultaneously 4-axis control)
✅ Wire diameter range: Φ0.03mm – Φ0.15mm (Φ0.15mm standard)
✅ Smart NC with a 21.5-inch multi-touch TFT screen
✅ 300L filtration system with 4 high-efficiency paper filters
✅ Compact and robust with a 3,250kg machine weight
✅ Ideal for high-precision industries like aerospace and medical devices
Ultra-precision machine
| Standard Specifications | MEX15 |
|---|---|
| Max. workpiece dimensions W×D×H |
180×165×60mm
※Should not exceed the max. workpiece weight. |
| Max. workpiece weight | 12kg
※Including the weight of jig or the like |
| Axis travel range X×Y×Z |
150×150×120mm |
| U-V axis travel U×V |
±20× ±20mm |
| Max. taper angle | ±10°/ 60mm work Thickness |
| Dimensions W×D×H |
1,830×1,770×1,855mm |
| Weight | 3,250kg |
| Control device | Smart NC |
|---|---|
| Input system | MDI, Ethernet, USB |
| Display | 21.5 inch TFT multi-touch screen |
| Axis controlled | 5 axis (simultaneously 4 axis) |
| Least input increment | 0.01µm |
| Least command increment | 0.01µm |
| Program memory capacity | 1GB |
| Power Supply | MPSC-20 |
|---|---|
| Input power source | 3-phase 200V/220V±10% 11 kVA, 50/60Hz |
| Weight | 160kg |
| Filtration device | MF300 |
|---|---|
| Tank capacity | 300L |
| Filter element | 4 Paper filters (internal-pressure type)×2 |
| Deionizer | Oil spec./Oil(Class 4 Petroleum No.3) Water spec./Ion-exchanged water |
| Weight | 400kg |
Wire diameter : Φ0.03mm to Φ0.15mm
(Φ0.15mm is standard.)
